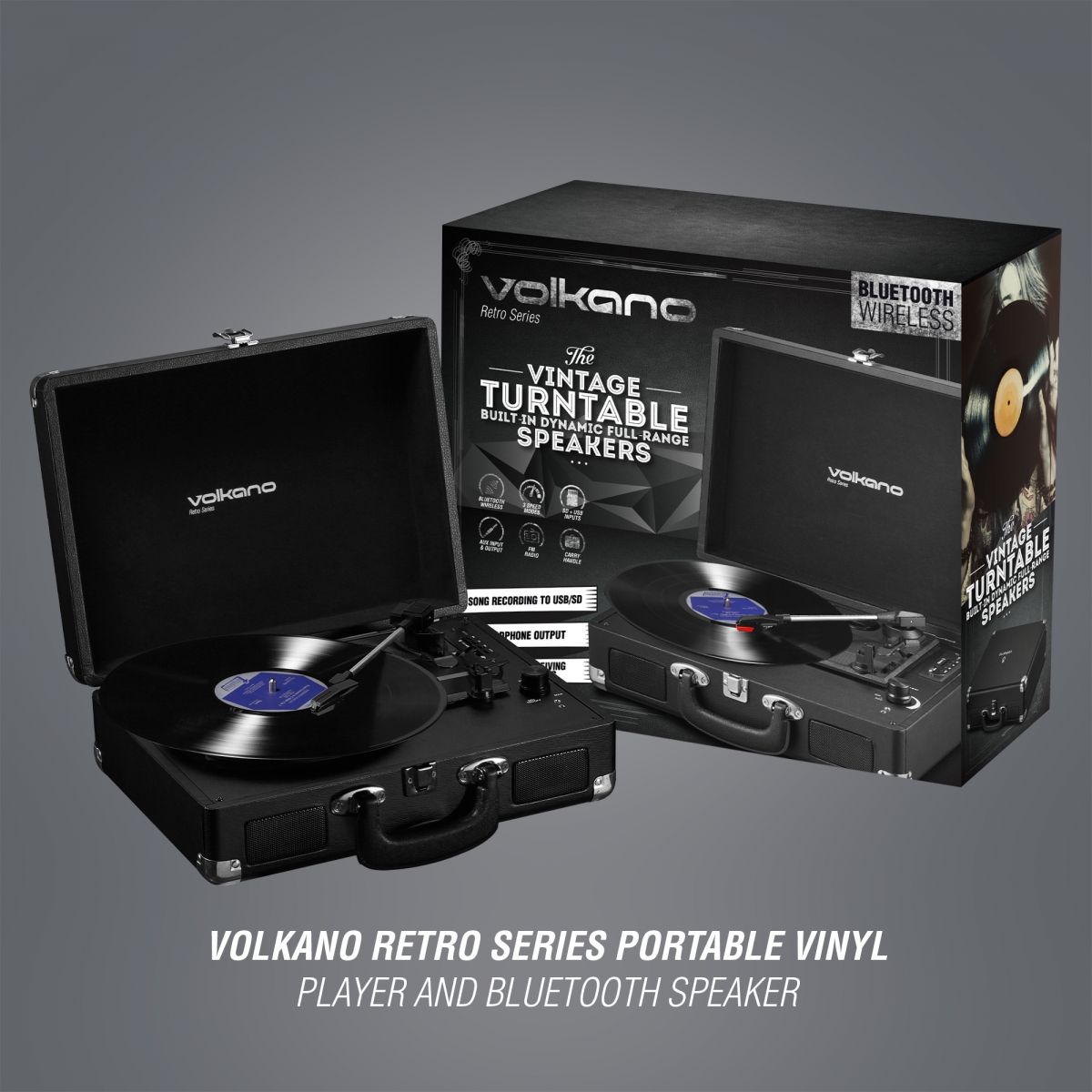

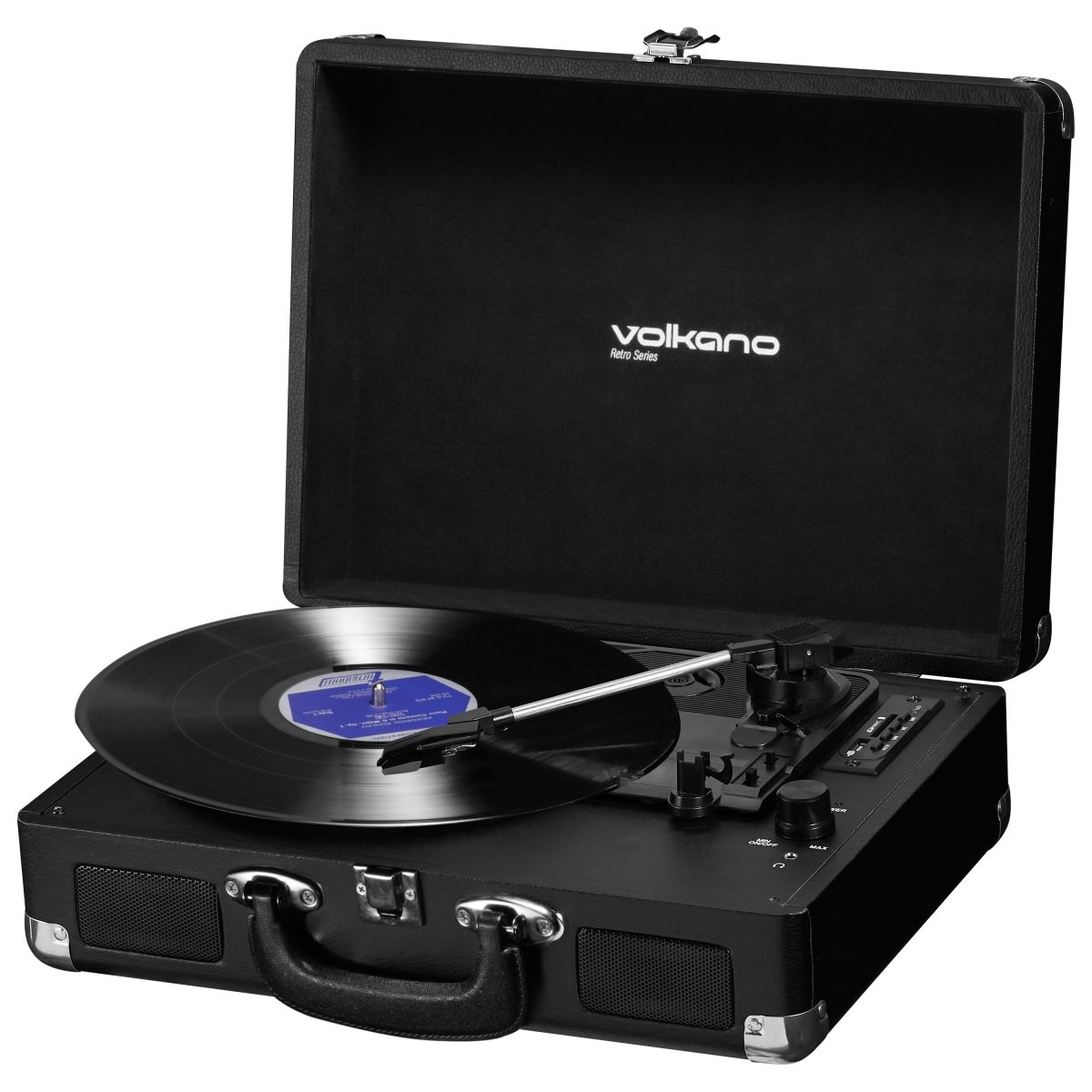

Volkano Retro Series Portable Vinyl 3-Speed Record Player Turntable

Enjoy your favourite vinyl records all over again with the Retro Series Multi-Function Record Player with a built in Bluetooth Speaker from Volkano.

The Retro Series features a 3-speed vinyl record player in a stylish, portable briefcase shell. Connect your phone or PC via Bluetooth for modern playback, or play music via aux in, cassettes, CD's, USB drive or SD card.

Use the two built-in 3 Watt speakers or connect your player to your hi-fi system with the stereo RCA out jack. The Retro also supports recording your vinyls to a USB drive or SD Card.

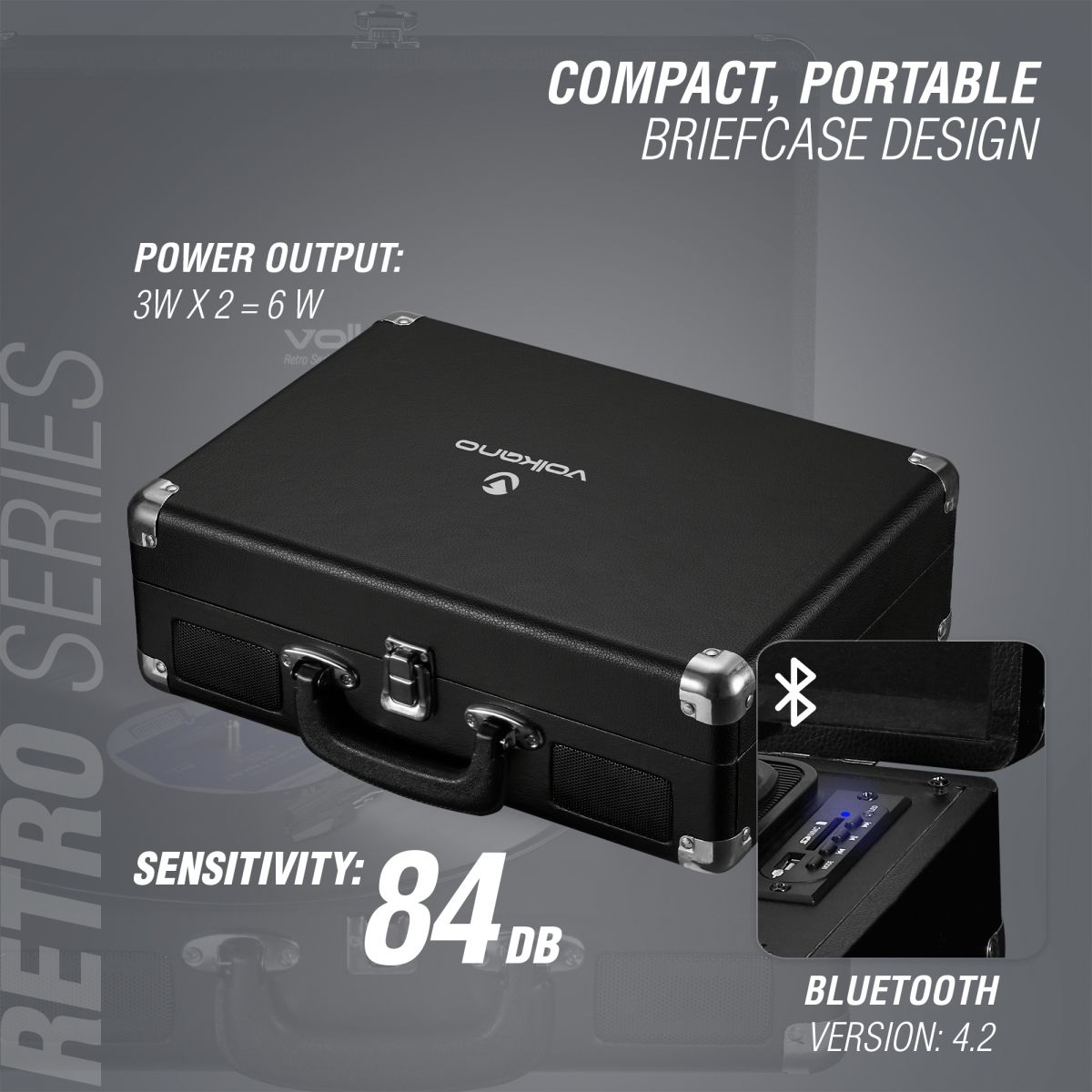

Compact, Portable Briefcase Design.

Features and Benefits:

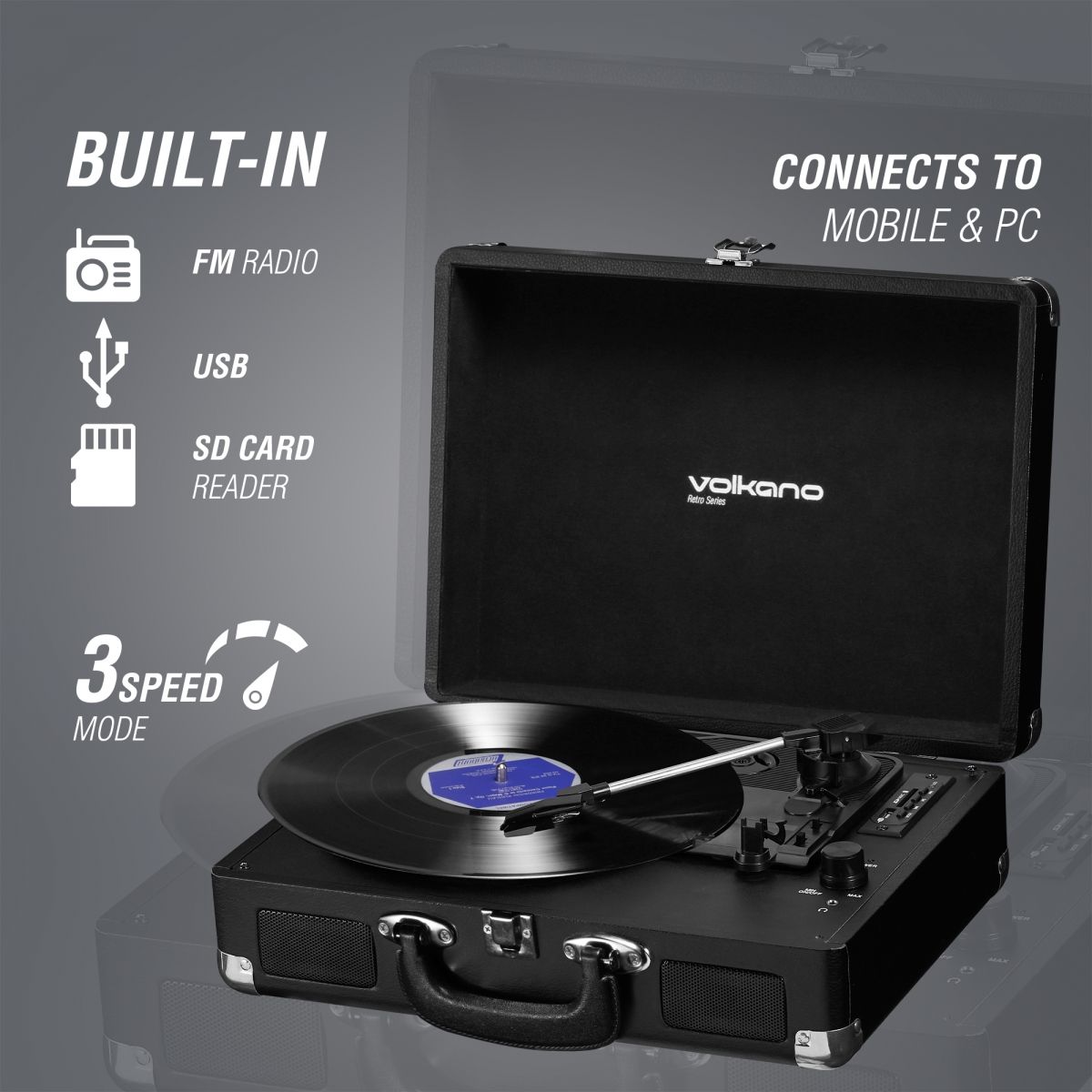

• Built-in, FM Radio, USB and SD Card Reader
• Aux Input
• Compact Carry Case Design
• Record Tracks to USB & SD Card
• 2 x Styli
• 3 Speed Modes

Specifications:

• Bluetooth Version: 4.2
• Range: 10 m / 33 ft
• SD Card (Max Size): 32 GB
• USB (Max Size): 32 GB
• Signal to Noise: 70 dB
• Sensitivity: 84 dB
• Driver Size: 2 x 40 mm
• Power Output: 3W x 2 = 6 W
• Power Supply: 5 V DC, 2 A
• Frequency Response: 90 Hz - 18 kHz

TROUBLESHOOTING GUIDE

1. Turntable does not spin
   Ensure the power adapter is properly connected to a 5 V DC 2 A source.
   Make sure the Power Switch is turned on (rotate Volume Control clockwise until you hear a click).
   Confirm the Speed Switch is set to 33, 45, or 78 RPM.
   Check that the Tonearm is properly positioned and not lifted or locked.
   If the turntable still does not spin, inspect the belt and pulley to ensure they are correctly seated.
2. Speed too fast or slow / chipmunk effect
   Verify that the Speed Switch is fully in the selected position.
   Check that the belt is not slipping or worn; replace if necessary.
   Make sure the turntable plate is level and free of debris.
   Avoid pressing down on the platter during operation.
3. Auto-Stop or Tonearm issues
   Ensure the Cue Lever moves freely and the Tonearm is seated correctly.
   Check that the Tonearm protector is not engaged.
   If the Tonearm does not lower or lift correctly, inspect the stylus and cartridge alignment.
4. Sound / Speaker issues
   Ensure speakers are not obstructed or muted.
   Adjust the volume via the Volume Control knob.
   Confirm the record is clean and free of scratches.
   Test with another vinyl to rule out record damage.
   If using RCA or Aux outputs, check the cable connections.
5. USB / SD Recording issues
   Format USB drives or SD cards to FAT32 before recording.
   Make sure the LED flashes before recording starts.
   Press the Button again to stop recording.
6. Bluetooth connectivity issues
   Ensure the device is in Bluetooth pairing mode.
   Keep the device within 10 m range.
   Remove old paired devices if your device has reached the connection limit.
   Ensure your mobile supports A2DP and AVRCP profiles.
7. Other tips


• Clean the stylus regularly using a soft brush with alcohol.

• Replace the stylus approximately every 250 hours of play.

• Avoid using the turntable near water or in high humidity areas.

What's in the box
1 x Volkano Retro Series Turntable
1 x USB Cable
1 x Power Adaptor
2 x Spare Styluses
1 x Aux Cable
1 x RCA Cable
1 x instruction manual
